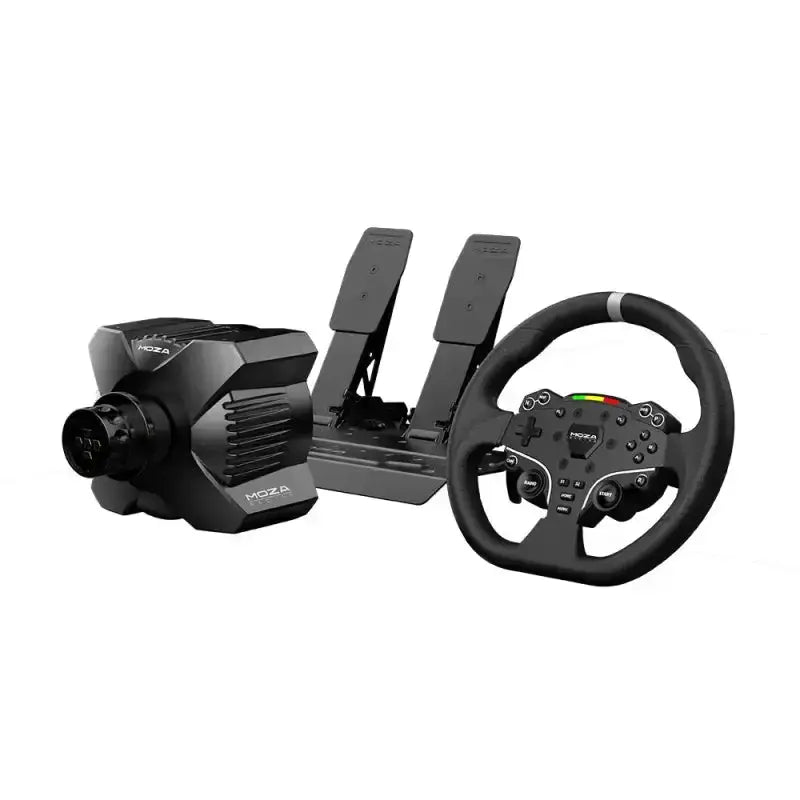

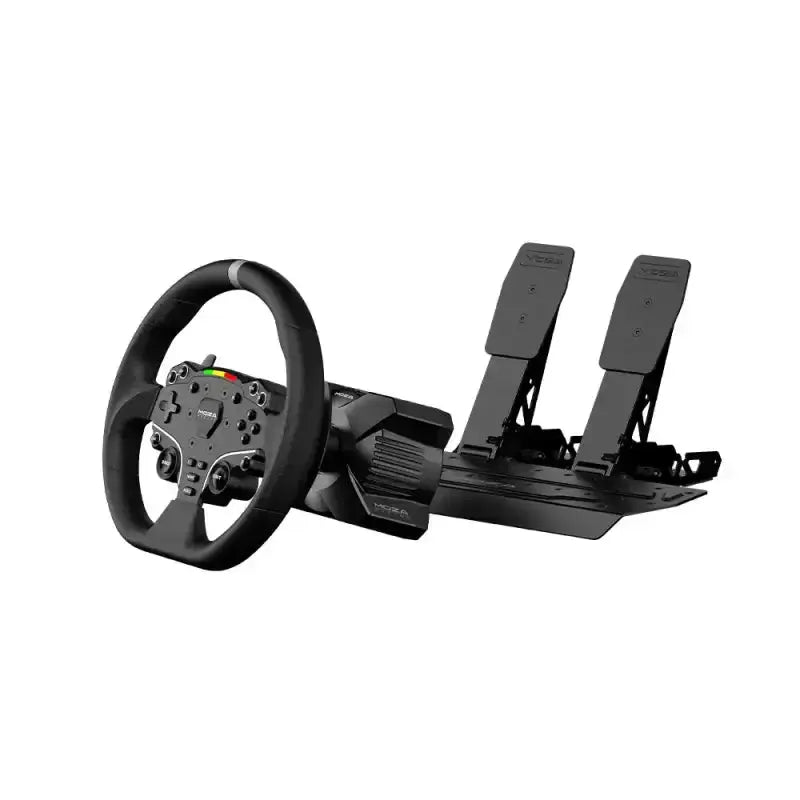

The MOZA R3 Racing Wheel and Pedals for PC combines the essential controls for a first direct-drive setup in one matched package. It includes the R3 wheel base, ES Lite steering wheel, SR-P Lite throttle and brake pedals, a table clamp, power equipment, USB cable and setup tools. This exact SKU is the PC version and is intended for Windows 10 or Windows 11 with MOZA Pit House.
Why choose this product?
- The 3.9 Nm direct-drive motor transfers steering detail without a belt or gear stage, giving clearer and faster force-feedback response.
- The wheel base, steering wheel, pedals and table clamp are supplied as a matched package, reducing the number of separate parts needed for a desk-based PC setup.
Bundle components
R3 direct-drive wheel base
The R3 uses a direct-drive servo motor with 3.9 Nm peak torque. Its aviation-grade aluminium-alloy housing contains a 15-bit encoder, while a 1000 Hz USB refresh rate supports responsive input reporting. Maximum wheel rotation is unrestricted in the hardware and can be configured for the selected simulator. The base provides power, pedal, USB and dashboard ports, accepts MOZA's quick-release system and supports online firmware updates. Four threaded holes on the underside are provided for fixed mounting, while the included clamp supports a desk installation.
ES Lite steering wheel
The included ES Lite is a 280 mm GT-style round wheel with ISF PU grips, an aluminium-alloy face plate and aluminium-alloy shift paddles. It provides 22 controls and ten high-brightness RGB rev LEDs. Telemetry lighting and RPM behaviour can be adjusted through MOZA Pit House. The wheel connects to the R3 through the MOZA quick release, so the steering and button signals remain part of the same ecosystem rather than requiring a separate USB cable.
SR-P Lite pedal set
The supplied two-pedal set consists of throttle and brake pedals without a clutch. Both the frame and pedal plates are made from high-strength steel. A Hall sensor measures throttle movement, while pedal spacing and plate height can be adjusted to suit the driving position. MOZA Pit House supports input calibration, reversal and output-curve adjustment. For more brake resistance, the first relevant upgrade is the MOZA SR-P Lite Brake Performance Kit, which is optional and not included.
Mounting and included hardware

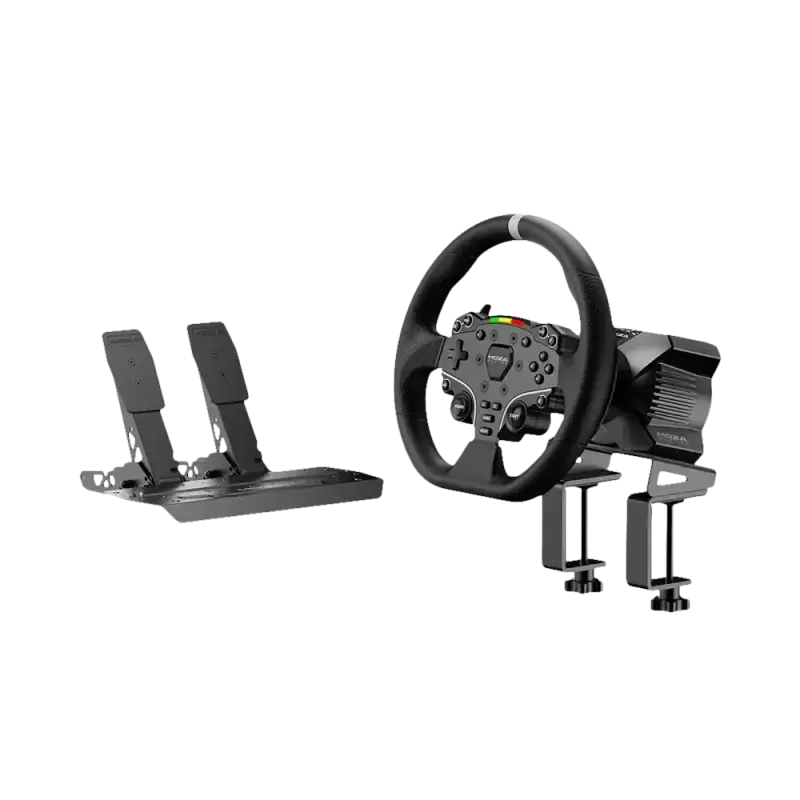

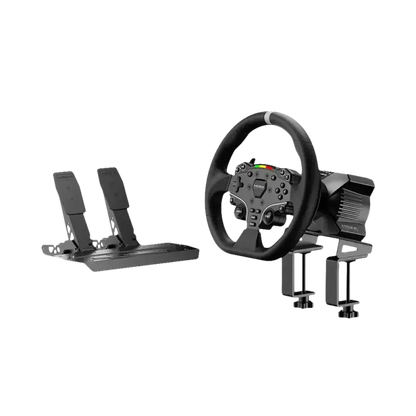

The bundle includes a table clamp for desk use and the wheel base also has a four-hole bottom pattern for compatible fixed mounting. The pedals should be positioned securely, especially when additional brake resistance is fitted. Power is supplied through the included adapter and power cord, while a USB cable connects the wheel base to the PC. The toolkit, user manual and warranty card support initial assembly and setup.
Software and configuration
MOZA Pit House is used on PC for wheel-base calibration, steering-angle settings, force-feedback strength, button mapping, pedal dead zones, pedal curves, telemetry LEDs and firmware updates. Configuration should be completed after mounting so the steering centre and pedal travel reflect the final installation. Game support varies by title, so the appropriate in-game steering and force-feedback profile must also be selected.
Upgrade options
An optional SR-P Lite clutch can convert the included set to three pedals. The MOZA ES Formula Wheel Mod can change the compatible ES-family rim to a 280 mm Formula-style shape. These upgrades are not part of this bundle. The PC version should not be confused with the separately sold Xbox-licensed R3 package, which uses different console-compatible steering-wheel electronics.
Compatibility
Platform: Windows 10 and Windows 11 PC.
Connection and ecosystem: USB connection to the PC, MOZA quick release for the supplied wheel and MOZA Pit House for calibration and firmware.
Requirements: a suitable desk or cockpit mounting position and an available mains socket and USB port. This PC-only SKU is not presented as Xbox or PlayStation compatible.
Specifications
What's in the box?
- R3 DD wheel base
- MOZA ES Lite steering wheel
- SR-P Lite pedal set without clutch
- Table clamp
- Power adapter and power cord
- USB cable
- Toolkit
- User manual and warranty card
Frequently asked questions
Is this R3 bundle compatible with Xbox?
No. This sellable SKU is the PC-only R3 bundle. MOZA also offers a separate Xbox-licensed R3 package, but console support must not be assumed for this version.
Does the pedal set include a clutch?
No. The standard package includes SR-P Lite throttle and brake pedals. A compatible SR-P Lite clutch is an optional addition and is not included.
Can the wheel base be mounted to a desk?
Yes. A table clamp is included. The base also provides four threaded holes underneath for a compatible fixed mounting solution.
Which software is used to configure the bundle?
MOZA Pit House is used on PC for calibration, force-feedback settings, steering angle, pedal curves, LED behaviour and firmware updates.
Can the steering-wheel shape be changed?
Yes. The compatible ES Formula Wheel Mod converts the ES-family wheel to a 280 mm Formula-style rim. It is optional and not included with the bundle.
