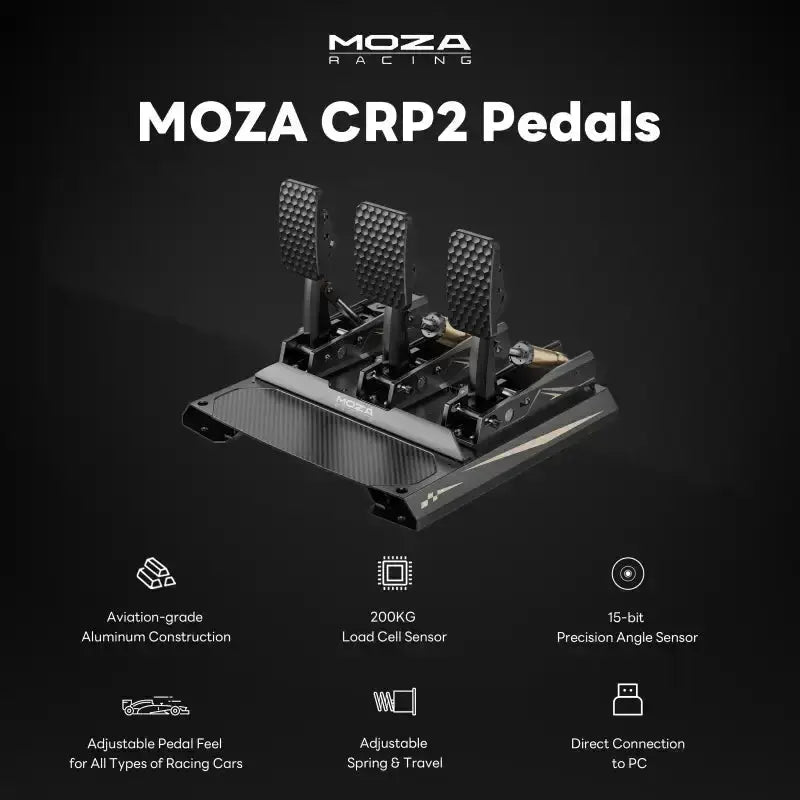

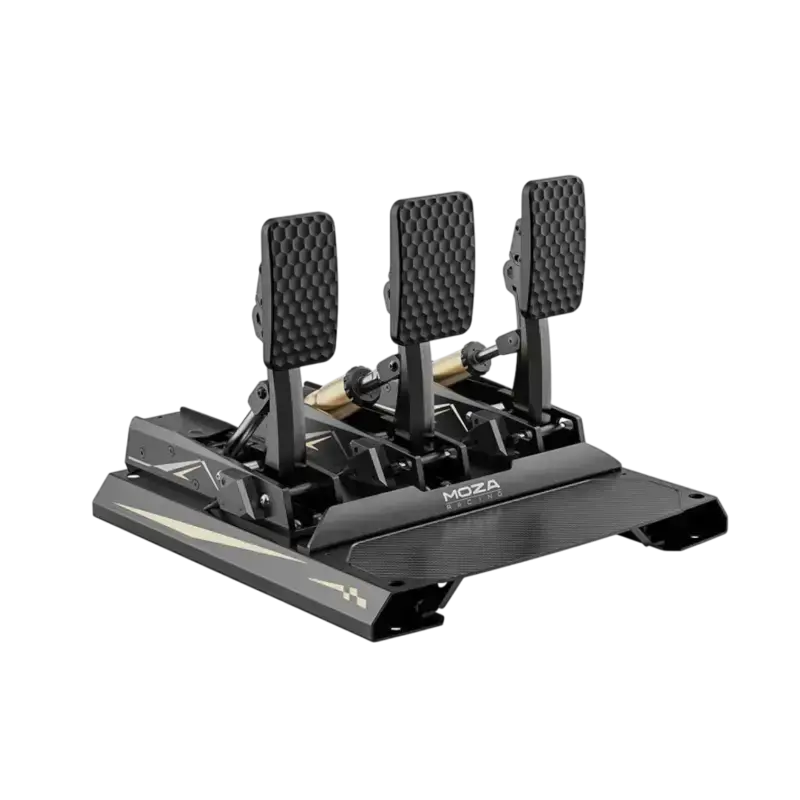

The MOZA CRP2 Load Cell Pedals combine CNC-machined aluminium pedal bodies with a high-strength steel base and 3K twill carbon-fibre heel plate. The product is sold in a throttle-and-brake configuration and in a three-pedal version that adds the dedicated CRP2 clutch. Both versions use the same 200 kg load-cell brake, 15-bit angle sensing and extensive mechanical adjustment.
Why choose this product?
- A 200 kg load cell and 15-bit angle sensor work together to support pressure-based braking and detailed software calibration.
- Adjustable travel, angle, pedal height and optional tuning components support road-car, GT, formula and rally preferences.
Product details
Materials and mechanism

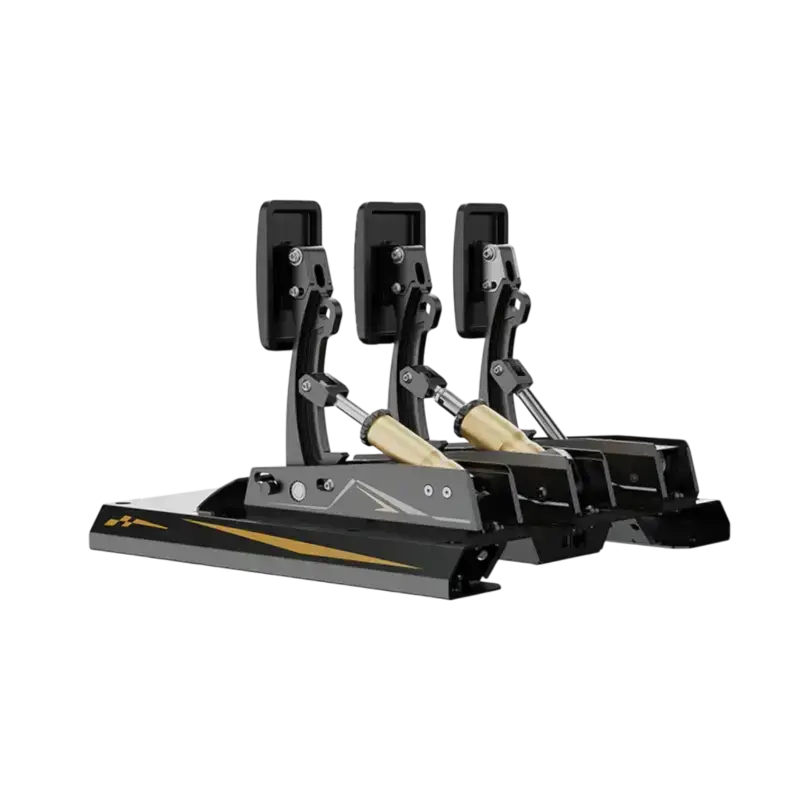

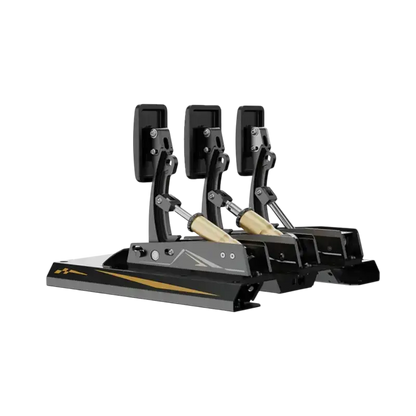

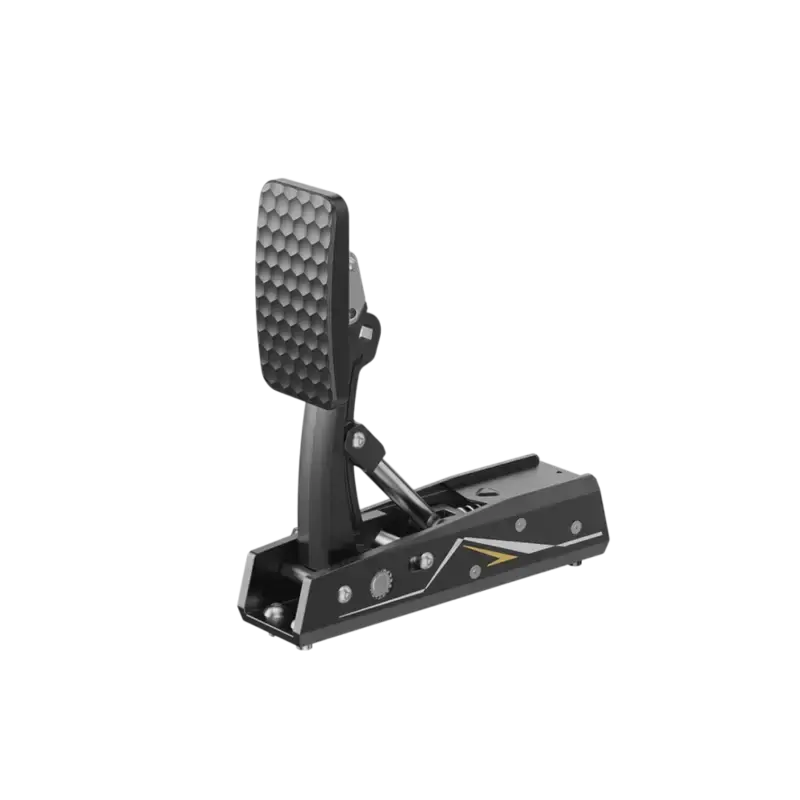

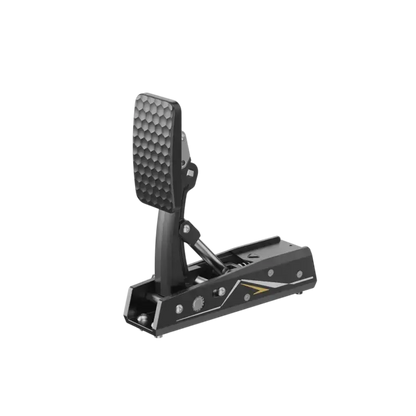

The pedal bodies are machined from aerospace-grade aluminium and mounted to a steel base with a carbon-fibre heel plate. Polished shafts and internal damping support smooth operation. The optional clutch included with the three-pedal version uses a progressive three-stage mechanism with adjustable spring resistance.
Brake sensing and adjustment
The brake combines a load cell rated from 0–200 kg with a 15-bit magnetic angle sensor and sensor-fusion processing. MOZA lists 115 standard brake adjustments and up to 1,764 configurations with the optional tuning kit. Brake travel, pedal angle, face height, footrest position and pressure engagement can be adjusted.
Version choice, software and upgrades

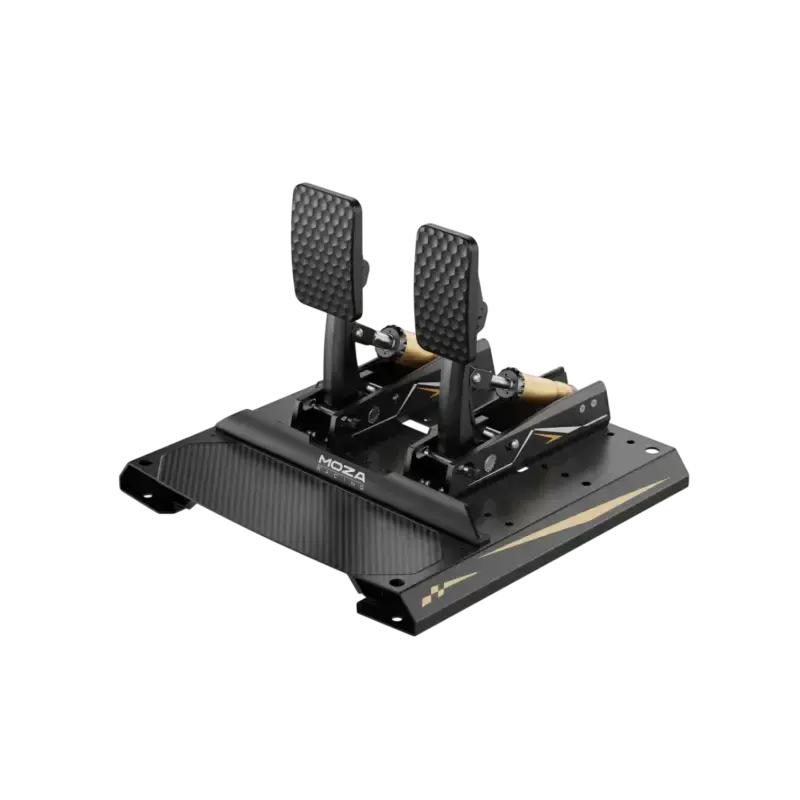

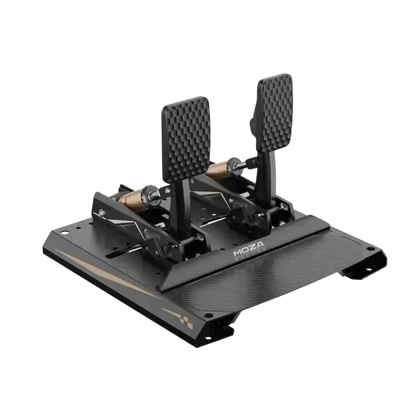

Choose the two-pedal set for throttle and brake, or the three-pedal set for throttle, brake and clutch. MOZA Pit House supports calibration, curves and dead zones. The optional MOZA Brake Performance Kit for CRP2 expands spring and damping combinations, while the MOZA CRP2 Inversion Kit converts the pedals to a suspended layout. Both are sold separately.
Compatibility
Platform: Windows PC through direct USB connection.
Ecosystem: the pedals operate independently alongside MOZA or third-party wheelbase hardware on PC.
Console limitation: standalone console support is not provided; console use depends on a separately compatible MOZA console setup.
Specifications
What's in the box?

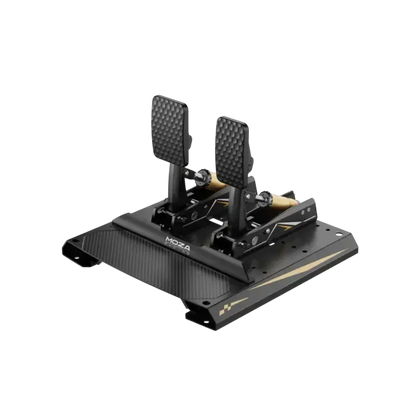

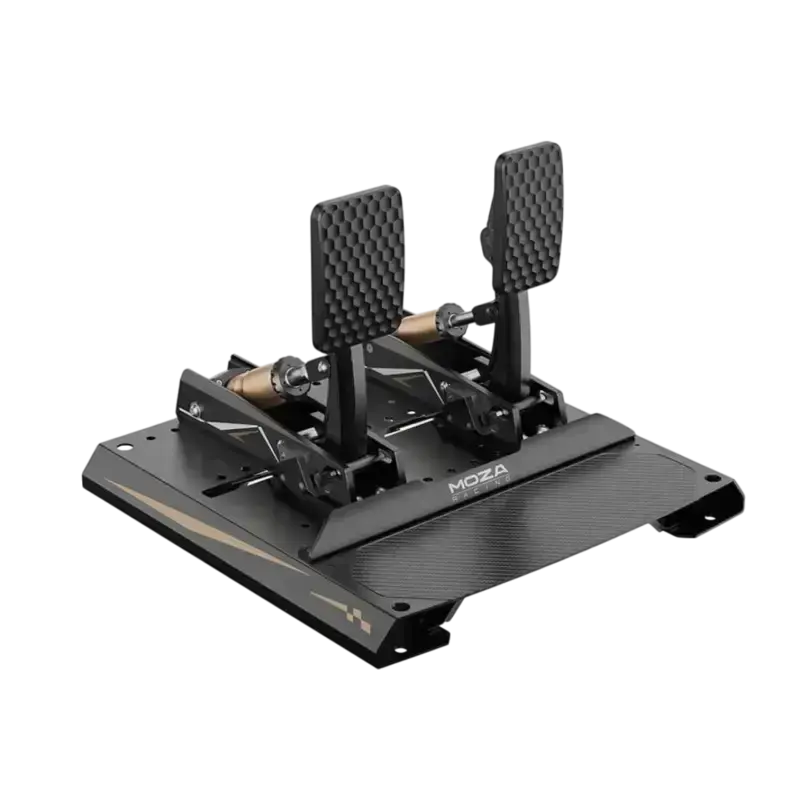

- Selected 2-pedal version: CRP2 throttle and brake set × 1

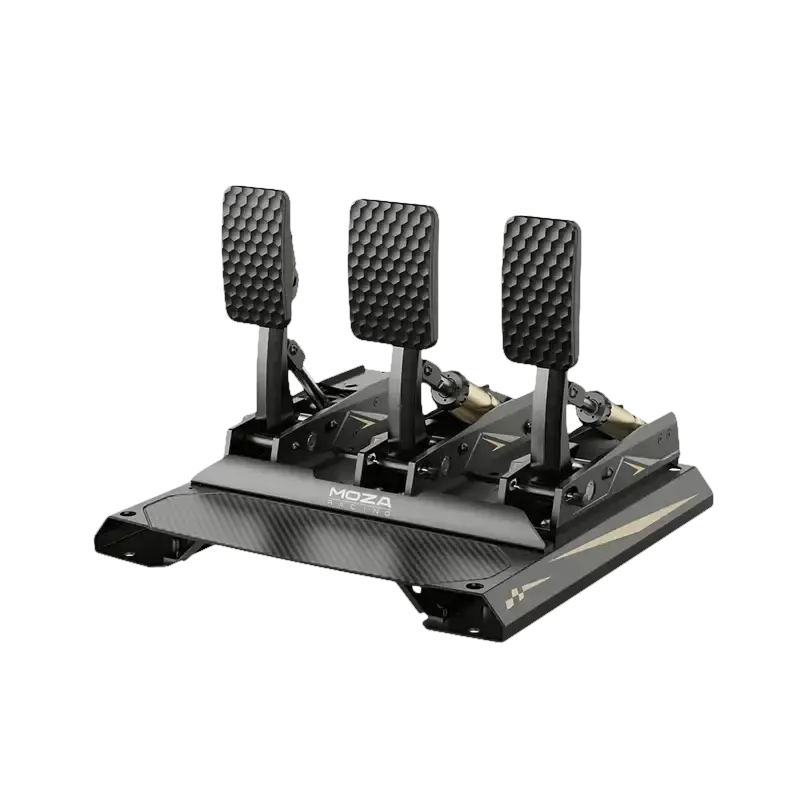

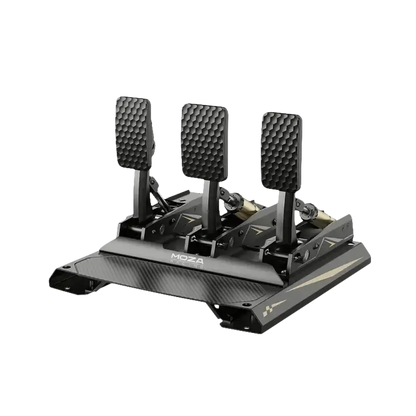

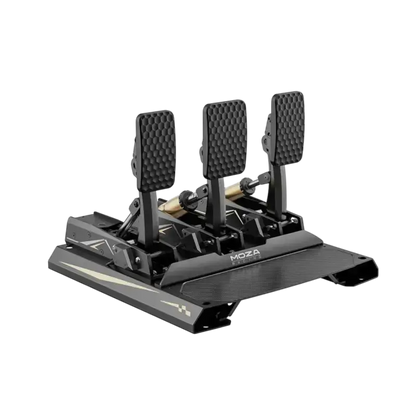

- Selected 3-pedal version: CRP2 throttle, brake and clutch set × 1
- Toolkit × 1
- Warranty card × 1
Frequently asked questions
Why are RS066 and RS066+RS067 handled together?
They are variants of the same Shopify product: RS066 is the two-pedal version and RS066+RS067 adds the CRP2 clutch.
How strong is the load cell?
The brake uses a load cell rated up to 200 kg together with a 15-bit angle sensor.
Can they connect directly to a PC?
Yes. They operate as a direct USB pedal device and are configured through MOZA Pit House.
Can the brake feel be changed?
Yes. Standard parts provide 115 adjustments, while the optional kit expands the combinations to 1,764.
Can they be inverted?
Yes. The optional CRP2 Inversion Kit provides a suspended mounting arrangement.
