MOZA Racing MRP Rudder Pedals

Precision control. Built for serious flight simulation.

The MOZA MRP Rudder Pedals are engineered for pilots who demand accuracy, durability, and realistic control across every phase of flight. Featuring a robust all-metal construction, a precision swing-arm mechanism, and high-resolution Hall sensors, the MRP delivers smooth, consistent rudder and brake input even under heavy, long-term use.

With fully adjustable ergonomics, customizable centering force, and optional damping, the MRP Rudder Pedals adapt seamlessly to different aircraft types, seating positions, and flying styles—making them an ideal foundation for both standalone setups and full flight cockpits.

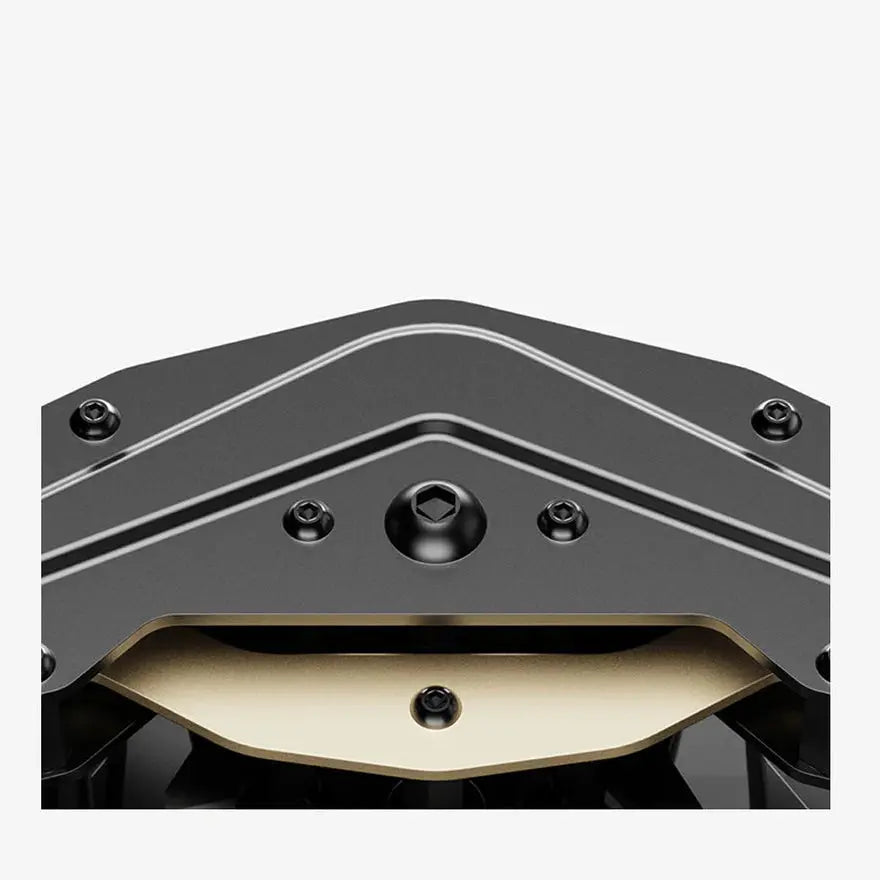

All-Metal, Stealth-Inspired Construction

Inspired by modern stealth aircraft design, the MRP Rudder Pedals feature a bold, angular aesthetic combined with a high-grade aluminum and steel frame. The rigid structure and precision linkage system ensure exceptional stability, minimal flex, and long-term durability in demanding simulation environments.

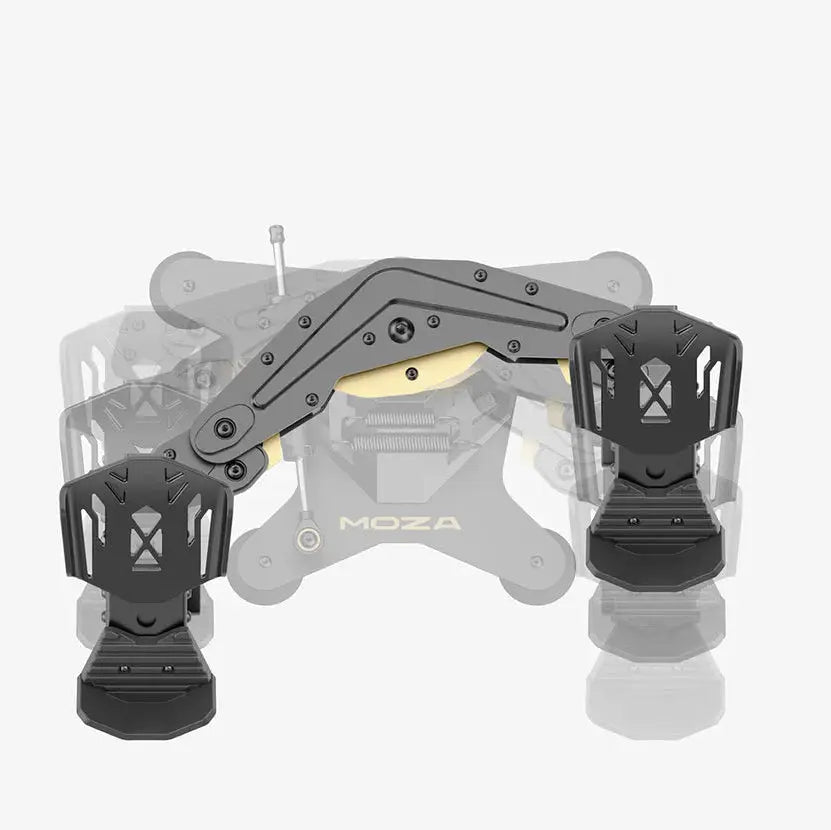

Precision Swing-Arm Rudder Control

The advanced swing-arm mechanism provides:

• ±30° rudder rotation

• Up to 150 mm of travel

This design delivers smooth, linear, and highly responsive rudder input. Adjustable end stops allow fine tuning to match different aircraft characteristics, from light general aviation planes to high-performance jets.

Fully Adjustable Pedal Ergonomics

The MRP is designed to fit a wide range of pilot preferences and cockpit layouts:

• Stepless pedal angle adjustment within a ±25° range

• Removable heel rest for flexible foot positioning

• Suitable for both upright and reclined seating positions

This ensures optimal comfort and control during long flight sessions.

High-Precision Hall Sensor Braking

Independent brake pedals are equipped with high-resolution Hall sensors, providing smooth, wear-free operation and consistent accuracy. With up to 20° of brake pedal travel, pilots benefit from precise modulation during taxiing, takeoff, landing, and ground maneuvering.

Customizable Centering Force & Resistance

Interchangeable springs allow pilots to adjust the rudder centering force to their preference. For added realism, an optional adjustable damper (sold separately) can be installed to introduce refined resistance, simulating hydraulic or aerodynamic forces found in real aircraft.

Seamless MOZA Ecosystem Integration

The MRP Rudder Pedals are designed for maximum flexibility:

• Direct RJ11 connection to MOZA Flight Bases

• Standard USB connection for universal PC compatibility

They integrate seamlessly with MOZA flight bases, flightsticks, yokes, and throttle quadrants, while also functioning perfectly as a standalone PC peripheral.

Key Features

• All-metal frame and precision linkage system

• Stealth-inspired industrial design

• Swing-arm rudder mechanism with ±30° rotation

• Up to 150 mm rudder travel

• High-precision Hall sensor brake pedals

• Adjustable pedal angle and removable heel rest

• Customizable centering force with interchangeable springs

• Optional adjustable damper support

• RJ11 and USB connectivity

• Designed for long-term durability and immersive realism

Technical Specifications

• Platform: PC

• Dimensions: 354 × 518 × 264 mm

• Weight: 8.0 kg

• Housing Material: Aluminum alloy

• Swing Arm Material: High-strength steel

• Pedal Plate Material: High-strength steel

• Heel Rest Material: High-strength plastic

• Rudder Rotation Angle: ±30°

• Rudder Travel Distance: Up to 150 mm

• Pedal Angle Adjustment Range: 0°–30°

• Brake Pedal Rotation Angle: 0°–20°

• Centering Force Adjustment: Interchangeable springs

• Adjustable Damper: Optional (sold separately)

What’s in the Box

• MOZA MRP Rudder Pedals

• Data cable

• Tool kit

• User manual
