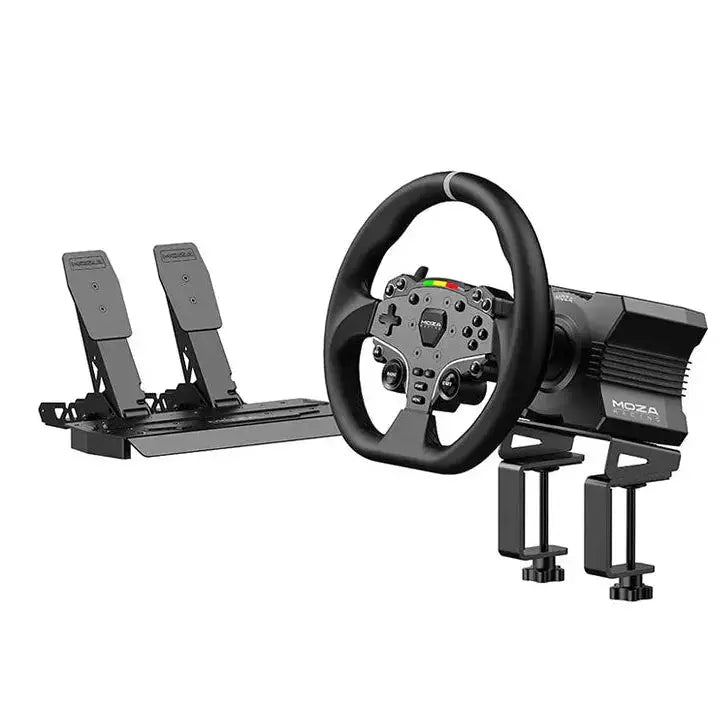

The MOZA Racing R5 Direct Drive Simulator Bundle combines the main controls needed to move from a conventional racing wheel to direct drive. The matched package includes a compact wheelbase, round steering wheel, two-pedal set, power supply, cables and table clamp. It can be installed on a desk immediately or mounted more permanently to a compatible wheel stand or cockpit.
Why choose this product?
- The 5.5 Nm direct-drive wheelbase sends force feedback to the steering shaft without belts or gears, providing a more immediate connection to steering load and road detail.
- A matched steering wheel, Hall-sensor pedal set, table clamp, cables and configuration software reduce the number of separate components required for a first direct-drive setup.
Bundle components

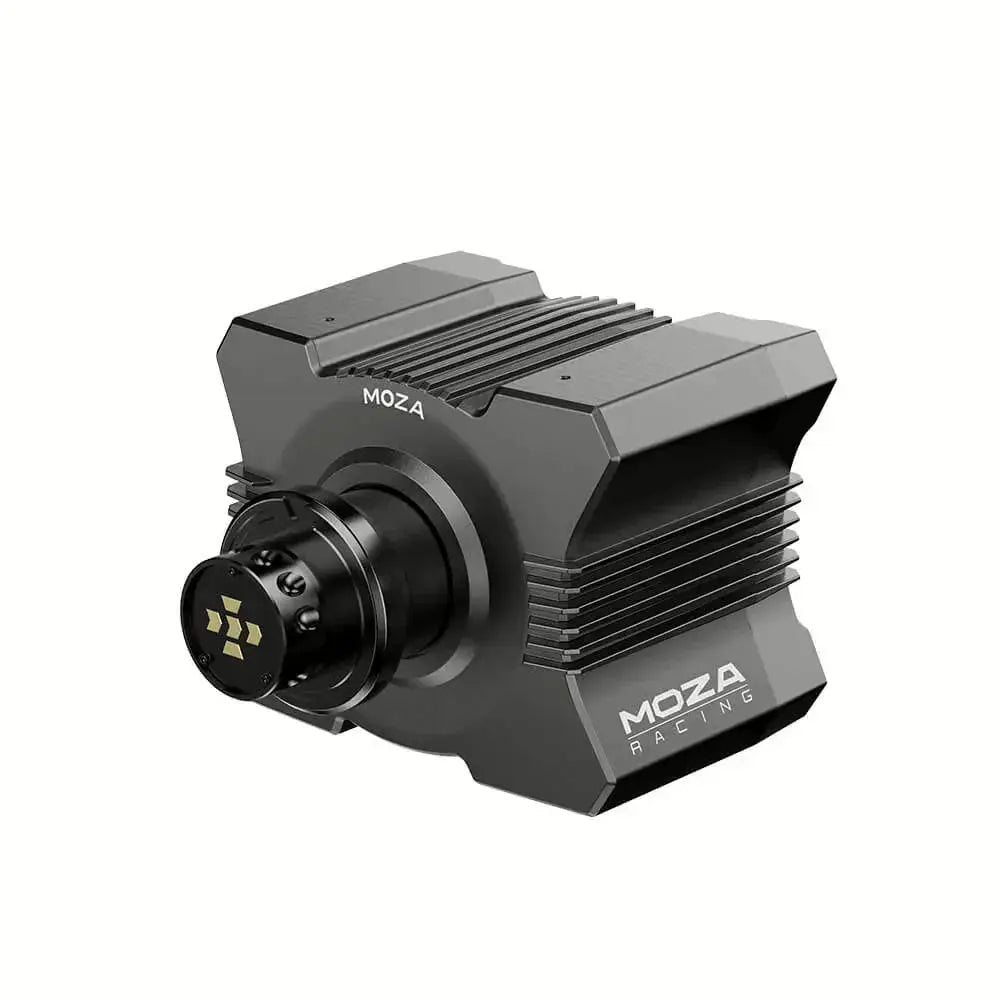

R5 direct-drive wheelbase
The compact R5 wheelbase delivers 5.5 Nm of peak torque directly from the motor to the steering shaft, avoiding the belts or gears used in conventional consumer wheel systems. Its aviation-grade aluminum-alloy housing keeps the unit compact for desk installations while providing a rigid enclosure. A 15-bit encoder, 1000 Hz USB refresh rate and steering-angle range up to 2700 degrees support detailed position tracking and configuration for different vehicle types.
Four threaded mounting holes on the underside support permanent installation on a compatible wheel stand or cockpit. For users without a rig, the included table clamp provides a desk-mounting option. The rear interfaces cover power, data, display, pedals and wheel input, while the quick-release system allows the included steering wheel to be attached and removed without tools.

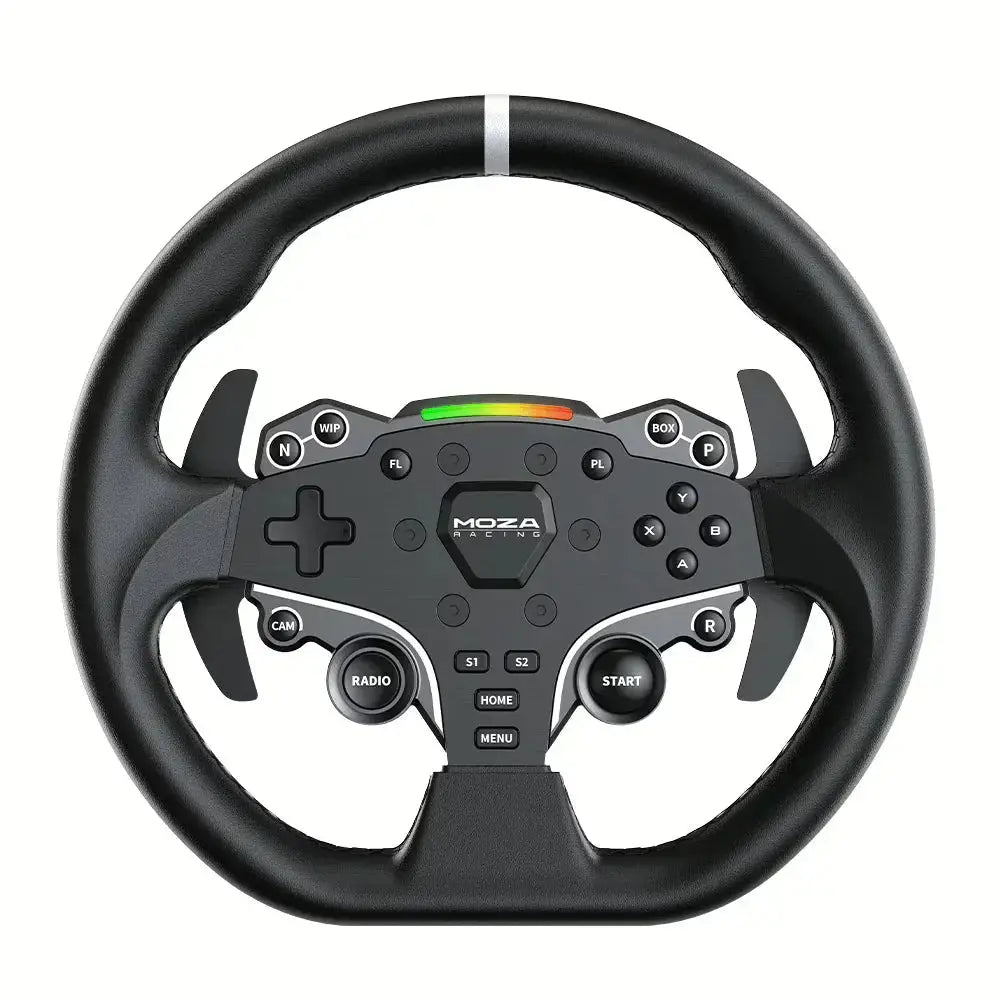

ES steering wheel
The included ES wheel uses an 11-inch round format that works across road cars, GT racing, rally and general driving simulation. Microfiber leather covers the grip area, while the frame, front plate and rotary dials use aluminum alloy. Twenty-two buttons and ten LED elements place car controls and telemetry feedback on the wheel, and the configurable lighting can be managed through MOZA Pit House.

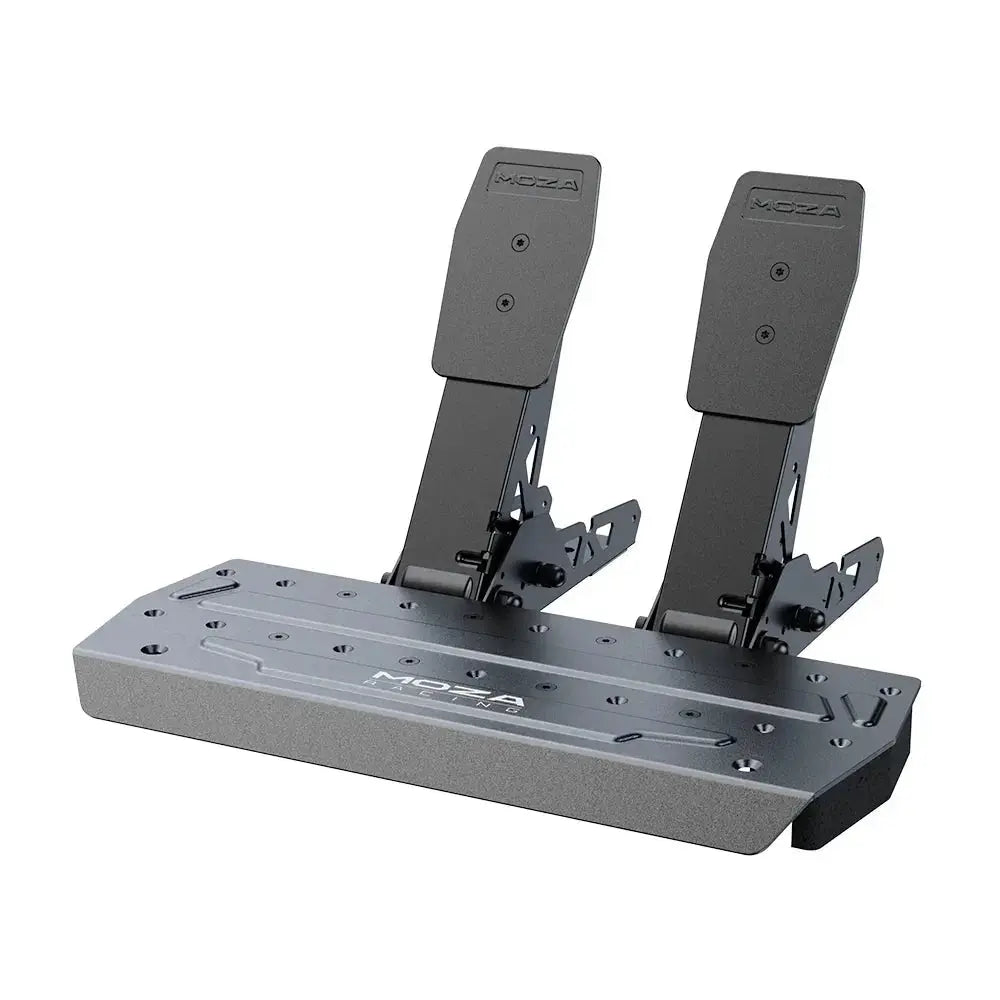

SR-P Lite pedal set
The two-pedal SR-P Lite set includes throttle and brake pedals but no clutch. High-strength steel is used for the pedal structure and plates, while Hall sensors detect pedal movement without mechanical sensor contact. Pedal spacing and plate height are adjustable, and the software supports input calibration, curve adjustment and input reversal. An anti-slip pad is included for floor use, although fixed mounting remains preferable when higher brake force is used.
Software and force-feedback configuration
MOZA Pit House provides one control centre for wheelbase force feedback, steering angle, pedal curves, button mapping, device status and firmware updates. Profiles can be created for different racing categories instead of rebuilding the setup for every title. MOZA also lists its NexGen 4.0 force-feedback algorithm and an iRacing 360 Hz mode for supported configurations, alongside advanced tuning options for response, road detail and steering behaviour.
Official upgrade paths
The bundle can be expanded with the optional SR-P Lite Clutch Pedal and the optional SR-P Lite Brake Performance Kit for a firmer, more progressive brake feel. MOZA also offers the 280 mm ES Formula Wheel Mod and the ES 12-inch Wheel Mod for the included ES steering wheel. These upgrades are sold separately and are not included in the standard R5 Racing Bundle.
Compatibility
The R5 Racing Bundle is officially specified for Windows PC. MOZA does not list native Xbox or PlayStation support for this bundle.
The wheelbase connects to the PC by USB and requires the included external power adapter, which accepts 110–220 V AC and supplies 12 V DC. Use either the included table clamp or the four bottom mounting holes; cockpit hardware beyond the supplied clamp is not included.
Specifications
What's in the box?
- MOZA R5 DD wheelbase
- ES steering wheel
- SR-P Lite pedals without clutch
- Table clamp
- Power adapter and power cord
- USB cable
- Toolkit
- User manual
- Warranty card
Frequently asked questions
Does the R5 Bundle work on Xbox or PlayStation?
The official R5 Racing Bundle specification lists Windows PC as the supported platform. Native Xbox or PlayStation compatibility is not claimed.
Can the bundle be installed on a normal desk?

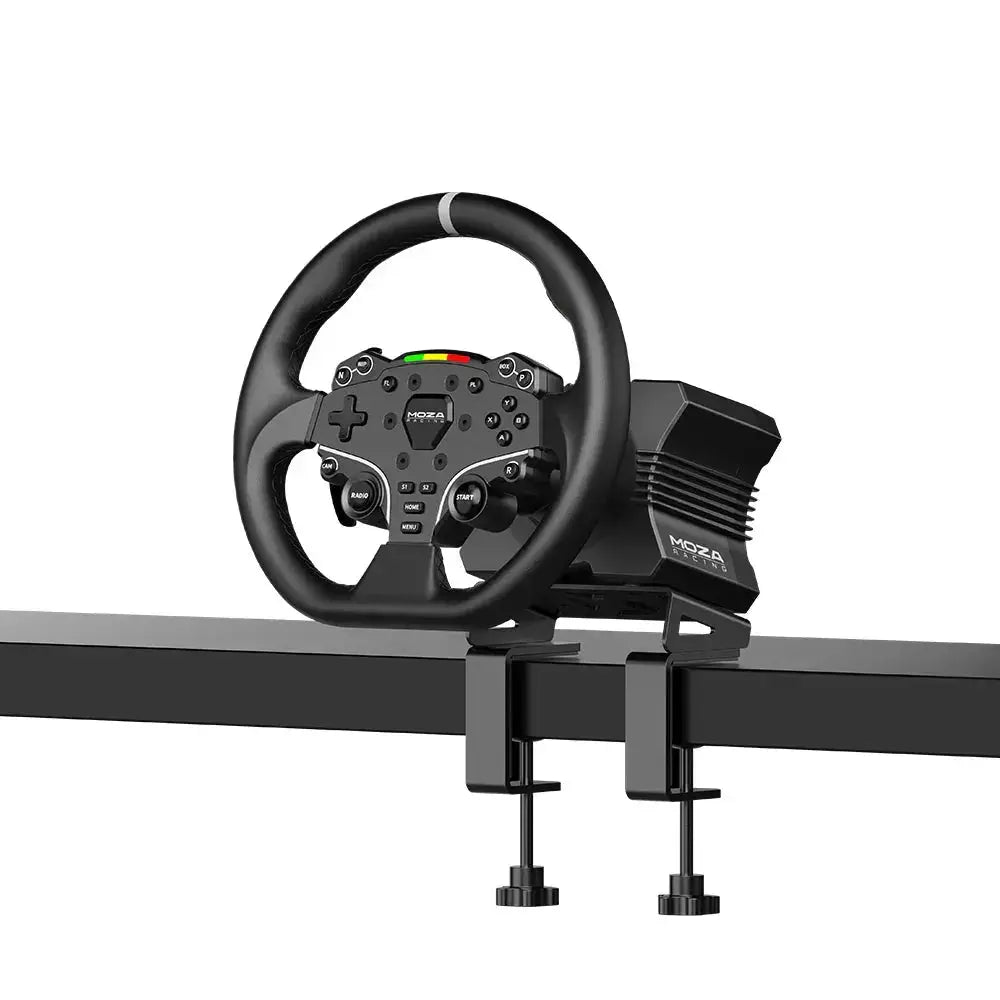

Yes. A table clamp is included. For a wheel stand or cockpit, the R5 base also has four mounting holes on the underside.
Is a clutch pedal included?
No. The bundle contains throttle and brake pedals. The matching SR-P Lite clutch pedal is an optional separate upgrade.
Can the force feedback and pedals be adjusted?
Yes. MOZA Pit House supports force-feedback tuning, steering angle, button mapping, pedal calibration, output curves, input reversal and firmware updates.
What can be upgraded later?
Official options include the SR-P Lite clutch, SR-P Lite Performance Kit, 280 mm formula wheel modification and 12-inch round wheel modification. These products are not included.
